Steel deck complete with nonskid walking surfaces

Hydraulic stabilizer legs (two)

80 gallon hydraulic oil tank (approximately)

Safety decals (English)

Fully painted, black and white

Rexroth valves, pumps and controls (where possible)

Control console, swing mounted

Safety and operation manual (two copies, English)

Three hole pump drive box (Funk) complete with clutch

Approximately 14 gallons hydraulic oil (AW46)

56 HP diesel powered unit (Perkins 404D - 22T 2.2 litre turbocharges, EC Stage 3A/USA EPA Tier 3) complete with enclosure

EP-26 drill head

Back to top

Accessory power port, 12V

Breakout table, tower mounted (2 in (51 mm) to 6 in (152 mm) nominal, 2 level)

Breakout table, tower mounted (2 in (51 mm) to 6 in (152 mm) nominal, 3 level)

Custom colour (non-metallic)

Decontamination racks

Extended mast (increases tower maximum drill rod length to 6-1/2 ft (2 m)

Horizontal tower positioner (4 way)

Hydraulic oil type (non standard)

Jib hoist complete with 1,100 lb (500 kg) winch (164 FPM (50mPM) max)

Lighting package

Operator training and on site assistance

Machine vise and mount

Receiver hitch hookup

Pipe guides (includes 1 standard size insert)

Stationary rod rack (for 5 ft (1.5m) rods)

One auxiliary hydraulic service line with electrical, valve and hydraulic quick disconnect

Water pump, FMC Model E0413 HD (20 GPM (76 LPM)/600 PSI (41 BAR))

Water transport system

Back to top

WEIGHT (APPROXIMATE)		7,020 lbs	3,184 kgs
Width		56 in	1422 mm
Length	Mast folded	181.5 in	4610 mm
Height	Mast folded	81 in	2057 mm
	Mast folded (foot & head removed)	67.5 in	1715 mm
	Mast raised (jib in lowest position)	176 in	4470 mm
	Mast raised (jib in highest position)	203.5 in	5169 mm
	Mast raised (jib removed)	172 in	4369 mm

Back to top

No photos currently available.

Back to top

Features
Options
Dimensions
Photos
Brochures

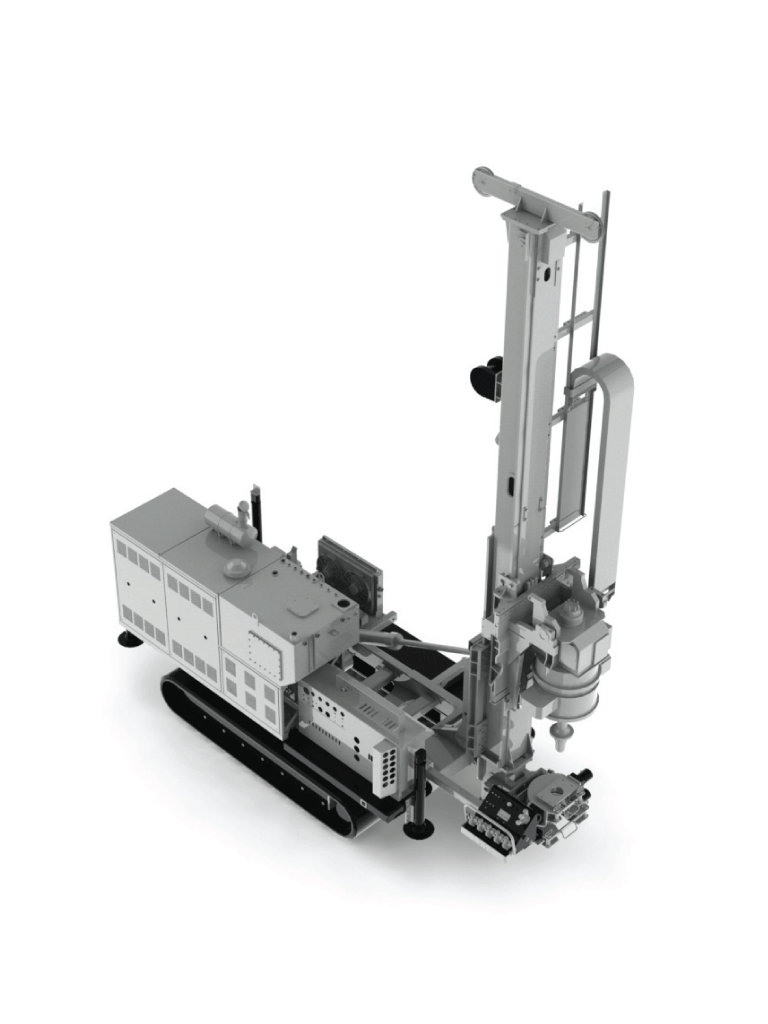

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level)

14 foot (4.25 m) drill head travel complete with 90 degree tilt

2" receiver, on deck (one only)

Hydraulic stabilizer legs (four)

Safety decals (english)

Fully painted, black and white

Rexroth valves, pumps and controls (where possible)

Main control console

Operator's control console (swing arm mount)

Safety and operation manual (two copies, English)

Side shift (head only, to the right when facing drill head)

Deck mounted power unit (225 HP Cat, 24V)

Hose track assembly for tower hosing

Rubber track assembly

Wireless controller (track control only)

Sonicor 50K drill head

Back to top

Additional Safety and Operation manual (one copy, English)

Automated single rod handler (no storage rack, 3" - 8" pipe range, includes rough-in package)

Breakout table upgrade (2½ to 12 inch nominal, 2 level)

Deck boxes (2) with locks - above deck mounting

Gravity feed hydraulic circuit

Jib hoist complete with 1,000 lb winch (top mount, 72 FPM max)

Jib hoist complete with 4,000 lb winch (top mount, 72 FPM max)

Jib hoist operation, secondary controls (requires jib hoist option)

Lighting package (tower)

Manual rod handler system (capable of 8.625" OD casing)

Moyno Pump 3LL6 (cast iron casings, tool steel/chrome plated rotor, buna elastomer stator, packing seal type)

Operator training and on site assistance

Pipe guide set (includes 3 standard size inserts)

Rod spinner, dual drive (mounts on breakout table)

Rod spinner, dual drive (rough-in package)

Secondary oil cooler package

Security covers for main control console and operator's console

SPT Hammer

Tower slide, bumper and controls (30 inch travel)

Two auxiliary hydraulic service lines with electrical, valve and hydraulic quick disconnects

Water pump flow meter

Water pump pressure reliever

Water pump, Bean Model L1122D HSNAR (75 GPM (284 LPM)/1000 PSI (69 BAR), abrasion resistant)

Water pump, Bean Model W1122 BCD (37 GPM (140 LPM)/1000 PSI (69 BAR))

Back to top

WEIGHT (APPROXIMATE)
Width
Length	Mast folded
Height	Mast folded
	Mast raised

Back to top

Back to top

Features
Options
Dimensions
Photos
Brochures

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level)

24 ft (7.32 m) drill head travel complete with 90 degree tilt

Steel deck complete with nonskid walking surfaces

Hydraulic stabilizer legs (four)

Safety decals (English)

Fully painted, black and white

Rexroth valves, pumps and controls (where possible)

Main control console

Operator's control console (swing arm mount)

Safety and operation manual (two copies, English)

Deck mounted power unit (173 HP Perkins, 24V) complete with enclosure

Hose track assembly for tower hosing

Steel track assembly

Rotary drill head

Back to top

Custom colour (non-metallic)

Deck boxes with locks (2 only)

Hydraulic oil type (non-standard)

Jib hoist complete with 4,000lb (1815 kg) winch (top mount, 72 FPM (22 mPM) max)

Lighting package (tower)

Operator training and on site assistance

Two auxiliary hydraulic service lines with electrical, valve and hydraulic quick disconnects

Water pump, Bean Model W1122 BCD (37 GPM (140 LPM)/1000 PSI (69 BAR))

Water pump, Bean Model L1122D HSNAR (75 GPM (284 LPM)/1000 PSI (69 BAR), abrasion resistant)

Wireless controller (track control only)

Back to top

WEIGHT (APPROXIMATE)
Width
Length	Mast folded
Height	Mast folded
	Mast raised

Back to top

Back to top

No brochures currently available.

Back to top

Features
Options
Dimensions
Photos
Brochures

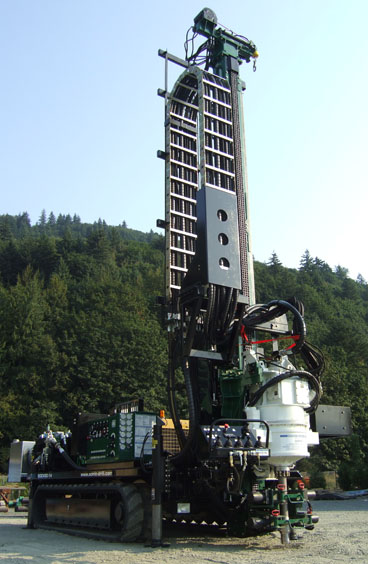

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level)

15 ft (4.57 m) drill head travel complete with 90 degree tilt

Steel deck complete with nonskid walking surfaces

Hydraulic stabilizer legs (four)

Safety decals (English)

Fully painted, black and white

Rexroth valves, pumps and controls (where possible)

Main control console

Operator's control console (swing arm mount)

Safety and operation manual (two copies, English)

Deck mounted power unit (250 HP Cat, 24V) complete with enclosure

Hose track assembly for tower hosing

Rubber track assembly

Sonicor 50K drill head

Back to top

Automated single rod handler (requires rough-in package)

Rough-in package for automated single rod handler

Manual single rod handler

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 3 level)

Breakout table, tower mounted (4 in (102 mm) to 12 in (305 mm) nominal, 2 level)

Breakout table, tower mounted (4 in (102 mm) to 12 in (305 mm) nominal, 3 level)

Custom colour (non-metallic)

Deck boxes with locks (2 only)

Hydraulic oil type (non-standard)

Jib hoist complete with 4,000lb (1815 kg) winch (top mount, 72 FPM (22 mPM) max)

LGP (low ground pressure) steel tracks

Lighting package (tower)

Operator training and on site assistance

Rod spinner complete with mounting arms

Receiver hitch hookup

Secondary oil cooler package

Side shift (head)

SPT hammer with cradle mount, hydraulic control circuit and quick disconnect hoses

Pipe guide set (includes 3 standard size inserts)

Stationary rod rack (for 10 ft (3 m)rods)

Tower slide, bumper and controls (36 in (915 mm) travel)

Two auxiliary hydraulic service lines with electrical, valve and hydraulic quick disconnects

Water pump, Bean Model W1122 BCD (37 GPM (140 LPM)/1000 PSI (69 BAR))

Water pump, Bean Model L1122D HSNAR (75 GPM (284 LPM)/1000 PSI (69 BAR), abrasion resistant)

Wireless controller (track control only)

Back to top

WEIGHT (APPROXIMATE)
Width
Length	Mast folded
Height	Mast folded
	Mast raised

Back to top

Back to top

Features
Options
Dimensions
Photos
Brochures

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level)

24 ft (? m) drill head travel complete with 90 degree tilt

Steel deck complete with nonskid walking surfaces

Hydraulic stabilizer legs (four)

Safety decals (English)

Fully painted, black and white

Rexroth valves, pumps and controls (where possible)

Illuminated control console with hinged security cover (vertical)

Safety and operation manual (two copies, English)

Three hole pump drive box, complete with clutch

180 gal (US) (? L) hydraulic oil (approximately, standard grade)

Deck mounted power unit (250 HP Cat, 24V) complete with enclosure

Hose track assembly for tower hosing

Tower slide, bumper and controls (48 inch travel)

Sonicor 50K drill head

Back to top

Air tank complete with quick disconnect (for blow down)

Automated Rod Handler with storage (requires rough-in package)

Auxilliary hydraulic service lines with electrical, valve and hydraulic quick disconnects (2 only)

Bolting pads (rear side of A-frame)

Custom colour (non-metallic)

Deck boxes with locks (1 only)

Grout plant (double drum) complete with valving and controls)

Heavy duty breakout table (4 to 12 inch nominal)

Hydraulic oil type (non-standard)

Jib hoist complete with 4000 pound winch (top mount, 72 FPM max)

Lighting package (tower)

Operator training and on site assistance

Pull back control console complete with valving and controls

Rod spinner complete with mounting arms

Rough-in package for Automated Rod Handler

Rubber Tracks

Secondary oil cooler package

Side shift (head)

Pipe guide set (includes 3 standard size inserts)

Stationary rod rack (for 20 foot rods)

Water pump, Bean Model W1122 BCD (37 GPM/1000 PSI)

Water pump, Bean Model L1122D HSNAR (75 GPM/1000 PSI, abrasion resistant)

Wiggle tail

Working platform bridge

Back to top

WEIGHT (APPROXIMATE)
Width
Length	Mast folded
Height	Mast folded
	Mast raised

Back to top

Back to top

Features
Options
Dimensions
Photos
Brochures

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level)

24 ft (? m) drill head travel complete with 90 degree tilt

Steel deck complete with nonskid walking surfaces

Hydraulic stabilizer legs (four)

Safety decals (English)

Fully painted, black and white

Rexroth valves, pumps and controls (where possible)

Pull back illuminated control console complete with valving, controls and hinged security cover (vertical)

Safety and operation manual (two copies, English)

Three hole pump drive box, complete with clutch

180 gal (US) (? L) hydraulic oil (approximately, standard grade)

Deck mounted power unit (250 HP Cat, 24V) complete with enclosure

Hose track assembly for tower hosing

Sonicor 50K drill head

Back to top

Air tank complete with quick disconnect (for blow down)

Automated Rod Handler with storage (requires rough-in package)

Auxilliary hydraulic service lines with electrical, valve and hydraulic quick disconnects (2 only)

Bolting pads (rear side of A-frame)

Custom colour (non-metallic)

Deck boxes with locks (1 only)

Grout plant (double drum) complete with valving and controls)

Heavy duty breakout table (4 to 12 inch nominal)

Hydraulic oil type (non-standard)

Jib hoist complete with 4000 pound winch (top mount, 72 FPM max)

Lighting package (tower)

Operator training and on site assistance

Rod spinner complete with mounting arms

Rough-in package for Automated Rod Handler

Secondary oil cooler package

Side shift (head)

Pipe guide set (includes 3 standard size inserts)

Stationary rod rack (for 20 foot rods)

Tower slide, bumper and controls (48 inch travel)

Water pump, Bean Model W1122 BCD (37 GPM/1000 PSI)

Water pump, Bean Model L1122D HSNAR (75 GPM/1000 PSI, abrasion resistant)

Wiggle tail

Working platform bridge

Back to top

WEIGHT (APPROXIMATE)
Width
Length	Mast folded
Height	Mast folded
	Mast raised

Back to top

Back to top

Features
Options
Dimensions
Photos
Brochures

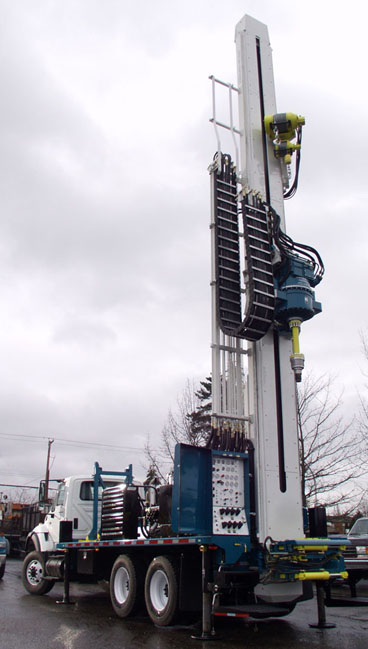

Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level)

24 ft (? m) drill head travel complete with 90 degree tilt

Steel deck complete with nonskid walking surfaces

Hydraulic stabilizer legs (four)

Safety decals (English)

Fully painted, black and white

Rexroth valves, pumps and controls (where possible)

Illuminated control console with hinged security cover (vertical)

Safety and operation manual (two copies, English)

Three hole pump drive box, complete with clutch

180 gal (US) (? L) hydraulic oil (approximately, standard grade)

Hose track assembly for tower hosing

Tower slide, bumper and controls (48 inch travel)

Sonicor 50K drill head

Back to top

Air tank complete with quick disconnect (for blow down)

Automated Rod Handler with storage (requires rough-in package)

Auxilliary hydraulic service lines with electrical, valve and hydraulic quick disconnects (2 only)

Bolting pads (rear side of A-frame)

Custom colour (non-metallic)

Deck boxes with locks (1 only)

Grout plant (double drum) complete with valving and controls)

Heavy duty breakout table (4 to 12 inch nominal)

Hydraulic oil type (non-standard)

Jib hoist complete with 4000 pound winch (top mount, 72 FPM max)

Lighting package (tower)

Operator training and on site assistance

Pull back control console complete with valving and controls

Rod spinner complete with mounting arms

Rough-in package for Automated Rod Handler

Rubber Tracks

Secondary oil cooler package

Side shift (head)

Pipe guide set (includes 3 standard size inserts)

Stationary rod rack (for 20 foot rods)

Water pump, Bean Model W1122 BCD (37 GPM/1000 PSI)

Water pump, Bean Model L1122D HSNAR (75 GPM/1000 PSI, abrasion resistant)

Wiggle tail

Working platform bridge

Back to top

WEIGHT (APPROXIMATE)
Width
Length	Mast folded
Height	Mast folded
	Mast raised

Back to top

Back to top

Features
Options
Dimensions
Photos
Brochures

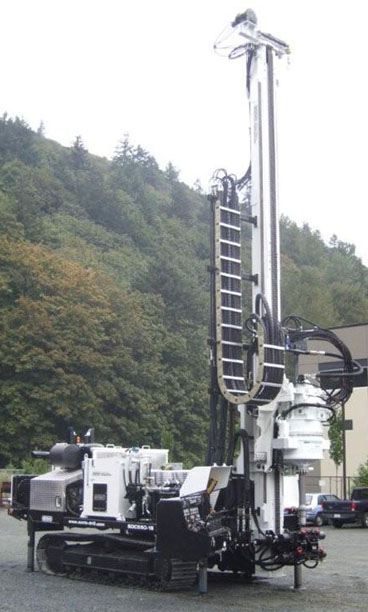

Breakout table, tower mounted (2½ to 8 inch nominal)

18 foot drill head travel complete with 90 degree tilt

Steel deck complete with nonskid walking surfaces

Hydraulic stabilizer legs (four)

80 gallon hydraulic oil tank (approximately)

Safety decals (English)

Fully painted, black and white

Rexroth valves, pumps and controls (where possible)

Illuminated control console with hinged security cover

Safety and operation manual (two copies, English)

Three hole pump drive box (Funk) complete with clutch

Approximately 140 gallons hydraulic oil (AW46)

Deck mounted power unit (250 HP Cat) complete with enclosure

Hose track assembly for tower hosing

Sonicor 50K drill head

Back to top

Air tank complete with quick disconnect (for blow down)

Automated Rod Handler with storage (requires rough-in package)

Auxilliary hydraulic service lines with electrical, valve and hydraulic quick disconnects (2 only)

Bolting pads (rear side of A-frame)

Custom colour (non-metallic)

Deck boxes with locks (1 only)

Extended mast (24 foot)

Heavy duty breakout table (4 to 12 inch nominal)

Hydraulic oil type (non-standard)

Jib hoist complete with 4000 pound winch (top mount, 72 FPM max)

LGP (low ground pressure) steel tracks

Lighting package (tower)

Operator training and on site assistance

Receivers on deck edge (2”, 4 only)

Rod spinner complete with mounting arms

Rough-in package for Automated Rod Handler

Rubber Tracks

Secondary oil cooler package

Side shift (head)

Slewing package (bearing, drive and controls)

Pipe guide set (includes 2 standard size inserts)

Stationary rod rack (for 10 foot rods)

Tower slide, bumper and controls (48 inch travel)

Two speed spindle circuit

Water pump, Bean Model W1122 BCD (37 GPM/1000 PSI)

Water pump, Bean Model L1122D HSNAR (75 GPM/1000 PSI, abrasion resistant)

Water tank (below deck mount)

Wireless controller

Back to top

WEIGHT (APPROXIMATE)
Width
Length	Mast folded
Height	Mast folded
	Mast raised

Back to top

Back to top

Features
Options
Dimensions
Photos
Brochures

Breakout table, tower mounted (2½ to 8 inch nominal)

28 foot drill head travel complete with 90 degree tilt

Steel deck complete with nonskid walking surfaces

Hydraulic stabilizer legs (four)

80 gallon hydraulic oil tank (approximately)

Safety decals (English)

Fully painted, black and white

Rexroth valves, pumps and controls (where possible)

Illuminated control console with hinged security cover

Safety and operation manual (two copies, English)

Three hole pump drive box (Funk) complete with clutch

Approximately 140 gallons hydraulic oil (AW46)

Deck mounted power unit (250 HP Cat) complete with enclosure

Hose track assembly for tower hosing

Sonicor 50K drill head

Back to top

Air tank complete with quick disconnect (for blow down)

Automated Rod Handler with storage (requires rough-in package)

Auxilliary hydraulic service lines with electrical, valve and hydraulic quick disconnects (2 only)

Bolting pads (rear side of A-frame)

Custom colour (non-metallic)

Deck boxes with locks (1 only)

Heavy duty breakout table (4 to 12 inch nominal)

Hydraulic oil type (non-standard)

Jib hoist complete with 4000 pound winch (top mount, 72 FPM max)

Lighting package (tower)

Operator training and on site assistance

Receivers on deck edge (2”, 4 only)

Rod spinner complete with mounting arms

Rough-in package for Automated Rod Handler

Rubber Tracks

Secondary oil cooler package

Side shift (head)

Slewing package (bearing, drive and controls)

Pipe guide set (includes 2 standard size inserts)

Stationary rod rack (for 20 foot rods)

Tower slide, bumper and controls (48 inch travel)

Two speed spindle circuit

Water pump, Bean Model W1122 BCD (37 GPM/1000 PSI)

Water pump, Bean Model L1122D HSNAR (75 GPM/1000 PSI, abrasion resistant)

Water tank (below deck mount)

Wireless controller

Back to top

WEIGHT (APPROXIMATE)
Width
Length	Mast folded
Height	Mast folded
	Mast raised

Back to top

No photos currently available.

Back to top
