SDC425-24   STANDARD FEATURES
Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level)
24 ft (7.32 m) drill head travel complete with 90 degree tilt
Steel deck complete with nonskid walking surfaces
Hydraulic stabilizer legs (four)
Safety decals (English)
Fully painted, black and white
Rexroth valves, pumps and controls (where possible)

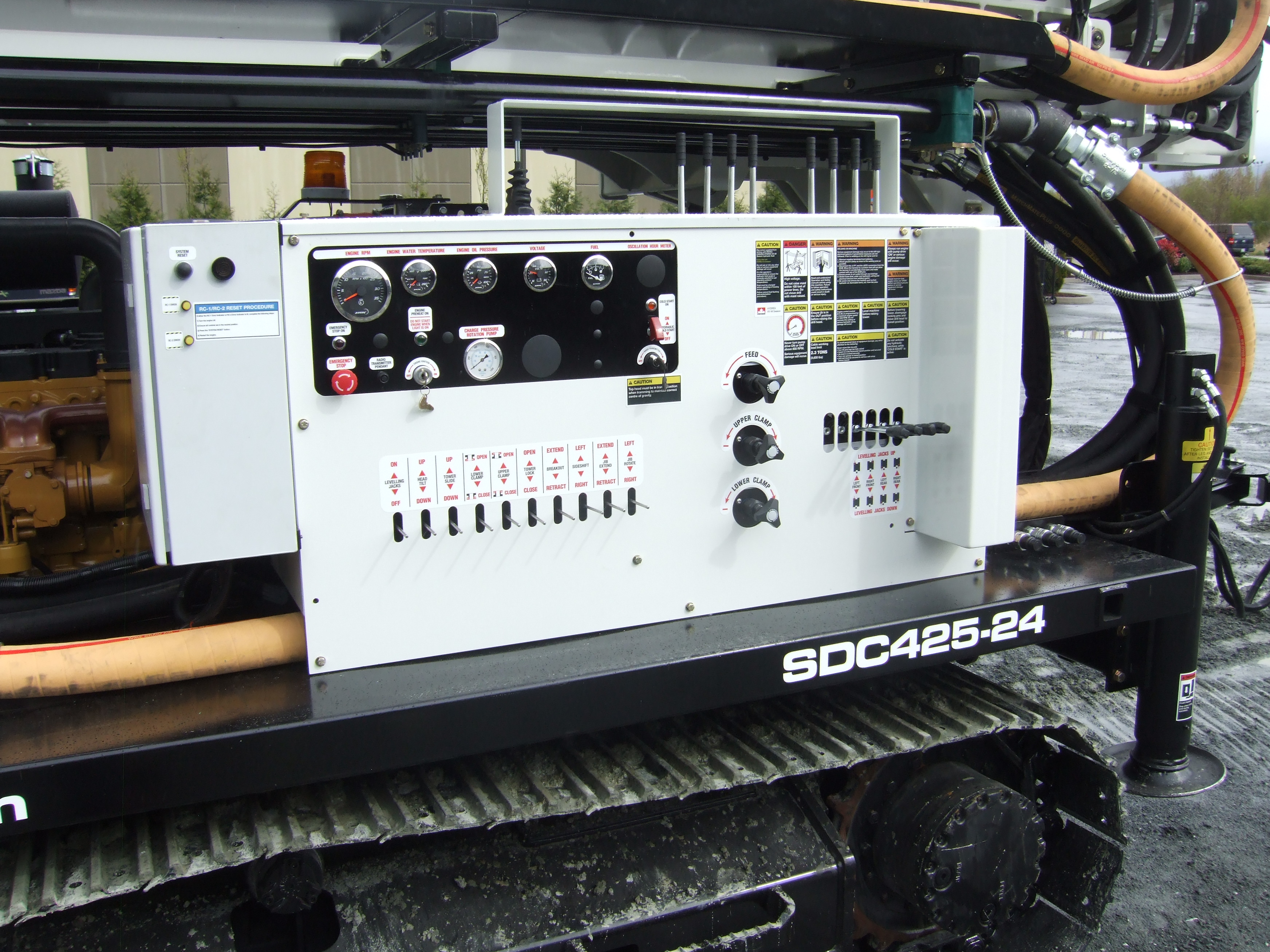

Main control console

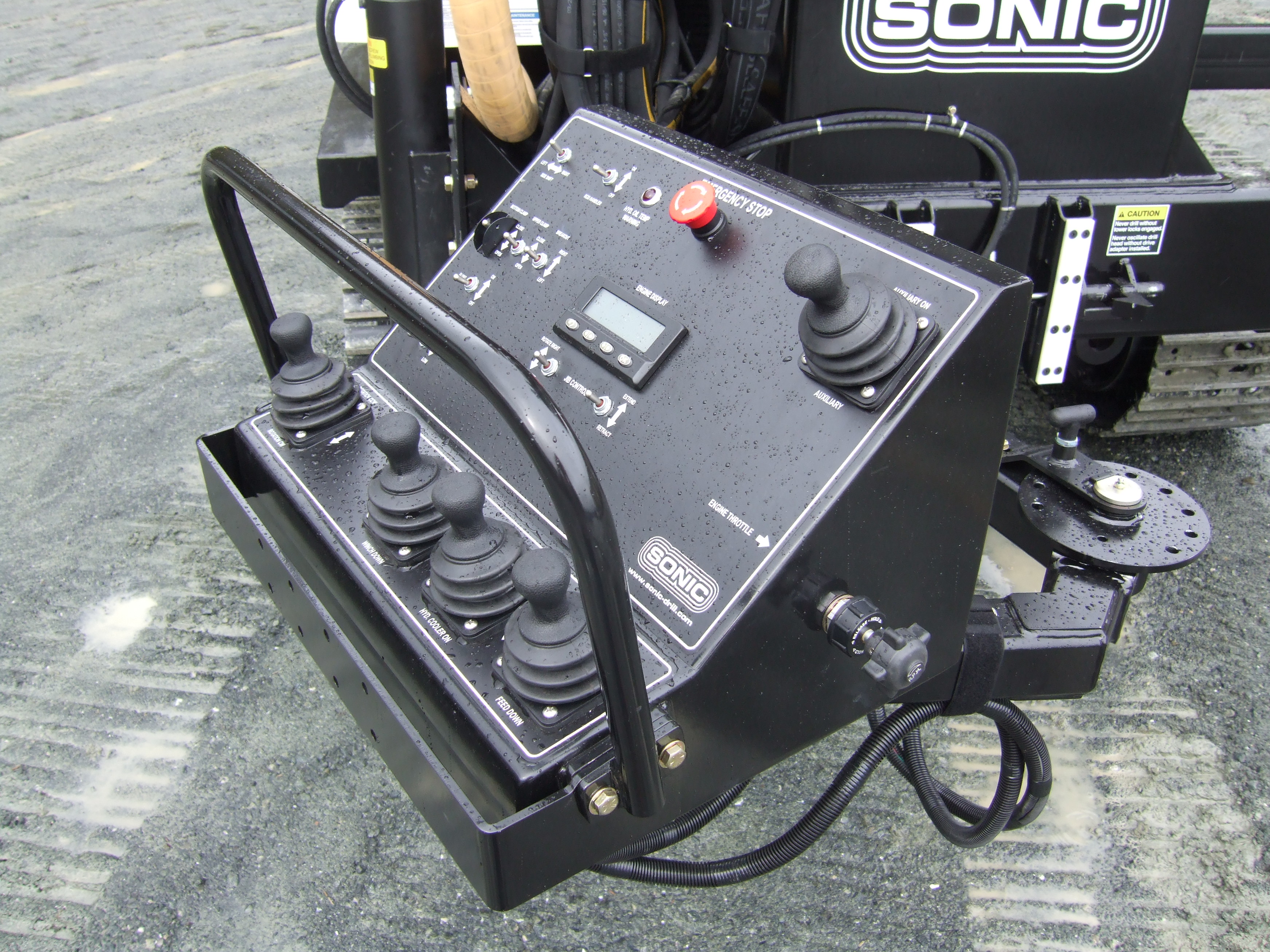

Operator's control console (swing arm mount)
Safety and operation manual (two copies, English)
Deck mounted power unit (173 HP Perkins, 24V) complete with enclosure
Hose track assembly for tower hosing
Steel track assembly

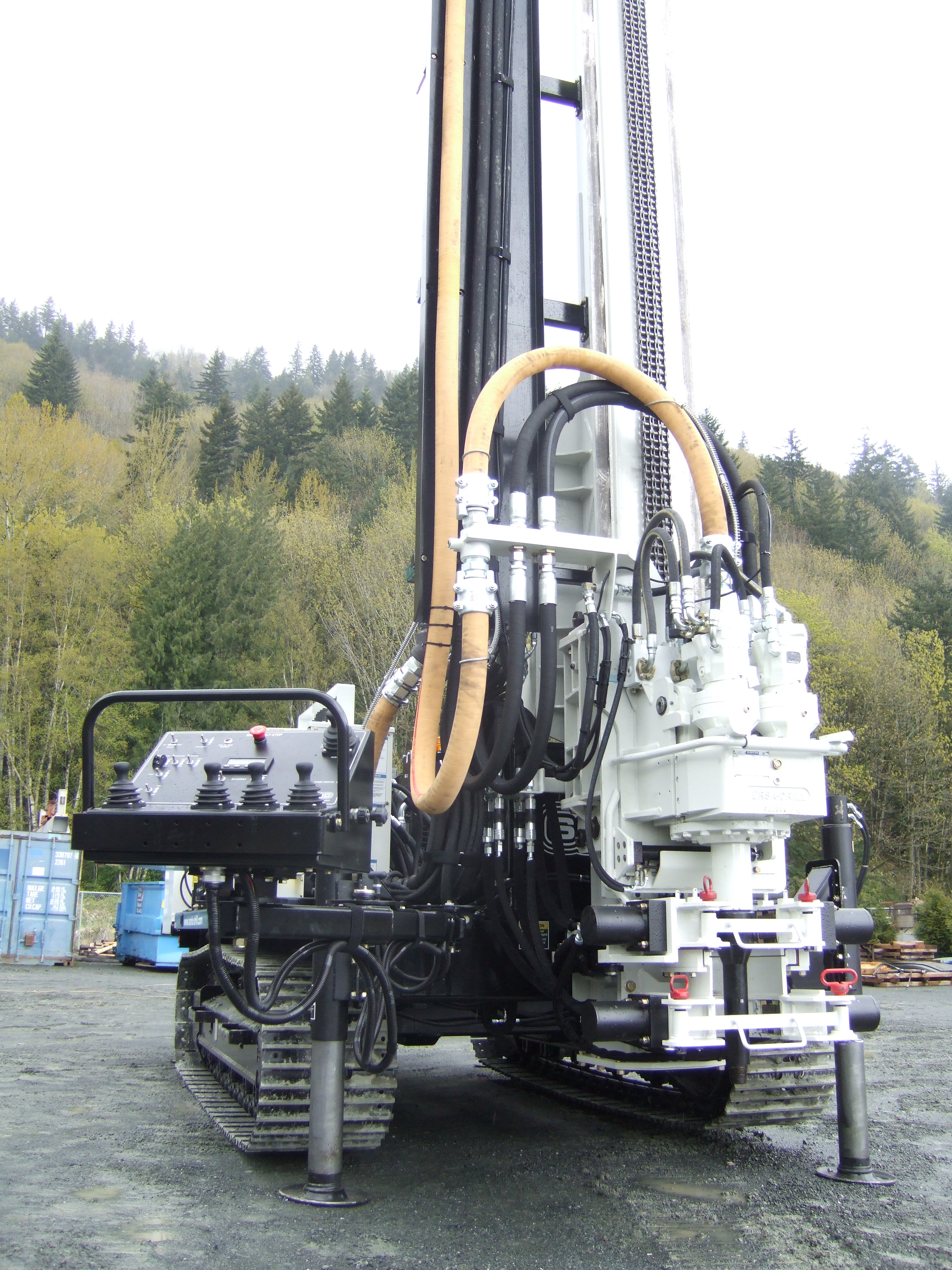

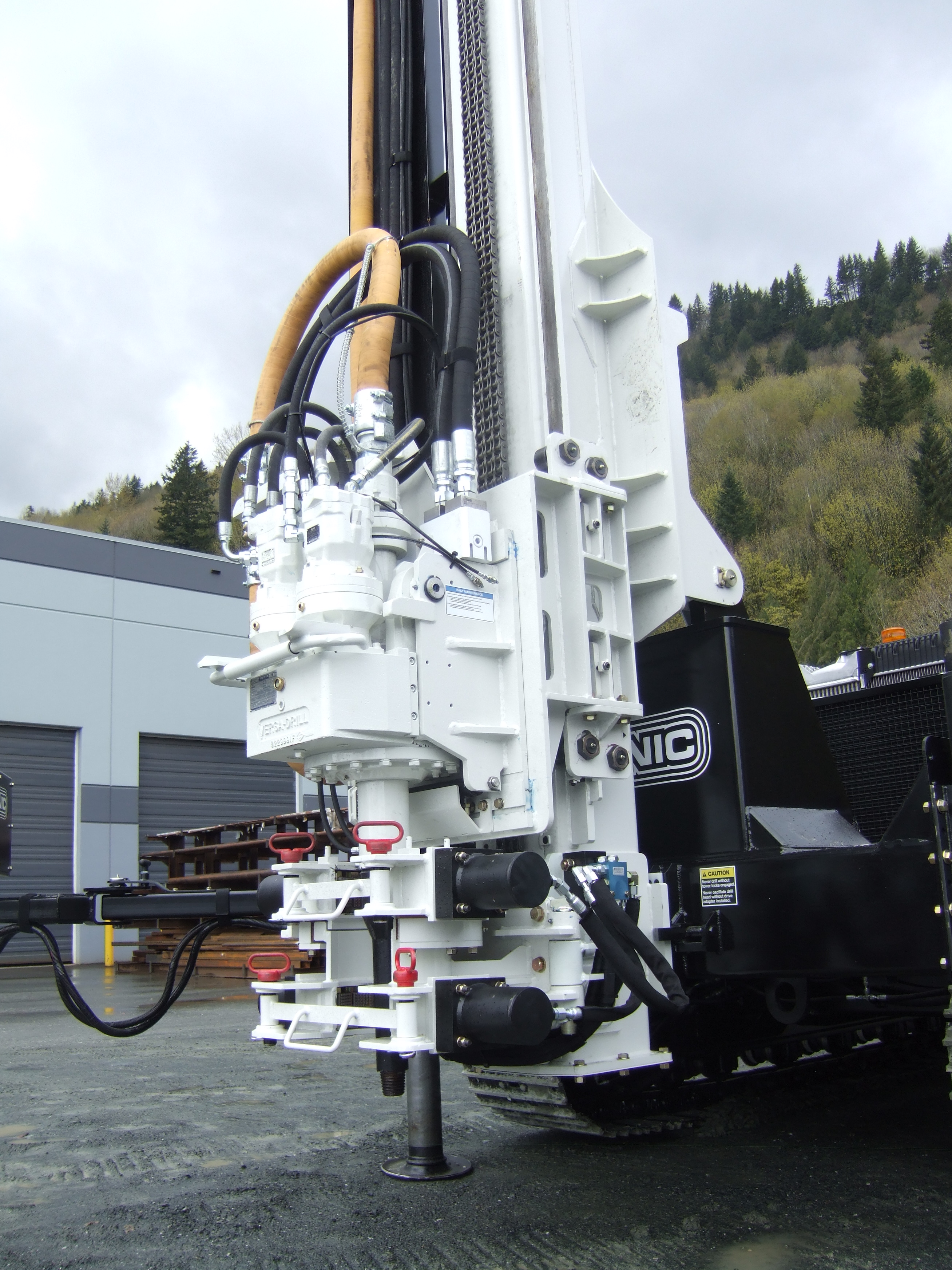

Rotary drill head

Back to top

OPTIONAL FEATURES
Custom colour (non-metallic)
Deck boxes with locks (2 only)
Hydraulic oil type (non-standard)
Jib hoist complete with 4,000lb (1815 kg) winch (top mount, 72 FPM (22 mPM) max)
Lighting package (tower)
Operator training and on site assistance
Two auxiliary hydraulic service lines with electrical, valve and hydraulic quick disconnects
Water pump, Bean Model W1122 BCD (37 GPM (140 LPM)/1000 PSI (69 BAR))
Water pump, Bean Model L1122D HSNAR (75 GPM (284 LPM)/1000 PSI (69 BAR), abrasion resistant)
Wireless controller (track control only)

Back to top


DIMENSIONS

WEIGHT (APPROXIMATE)
Width

Length

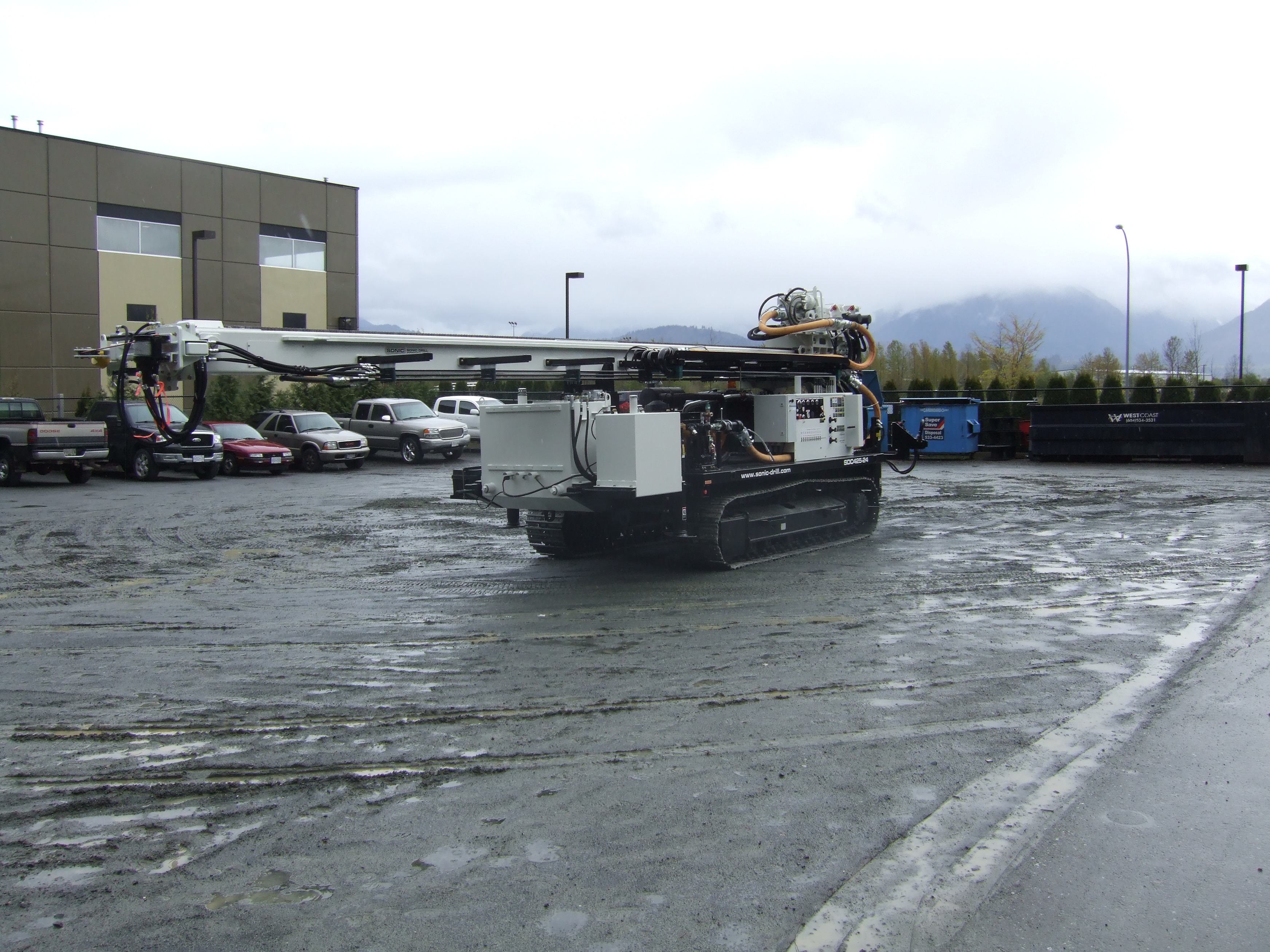

Mast folded

Height
Mast folded

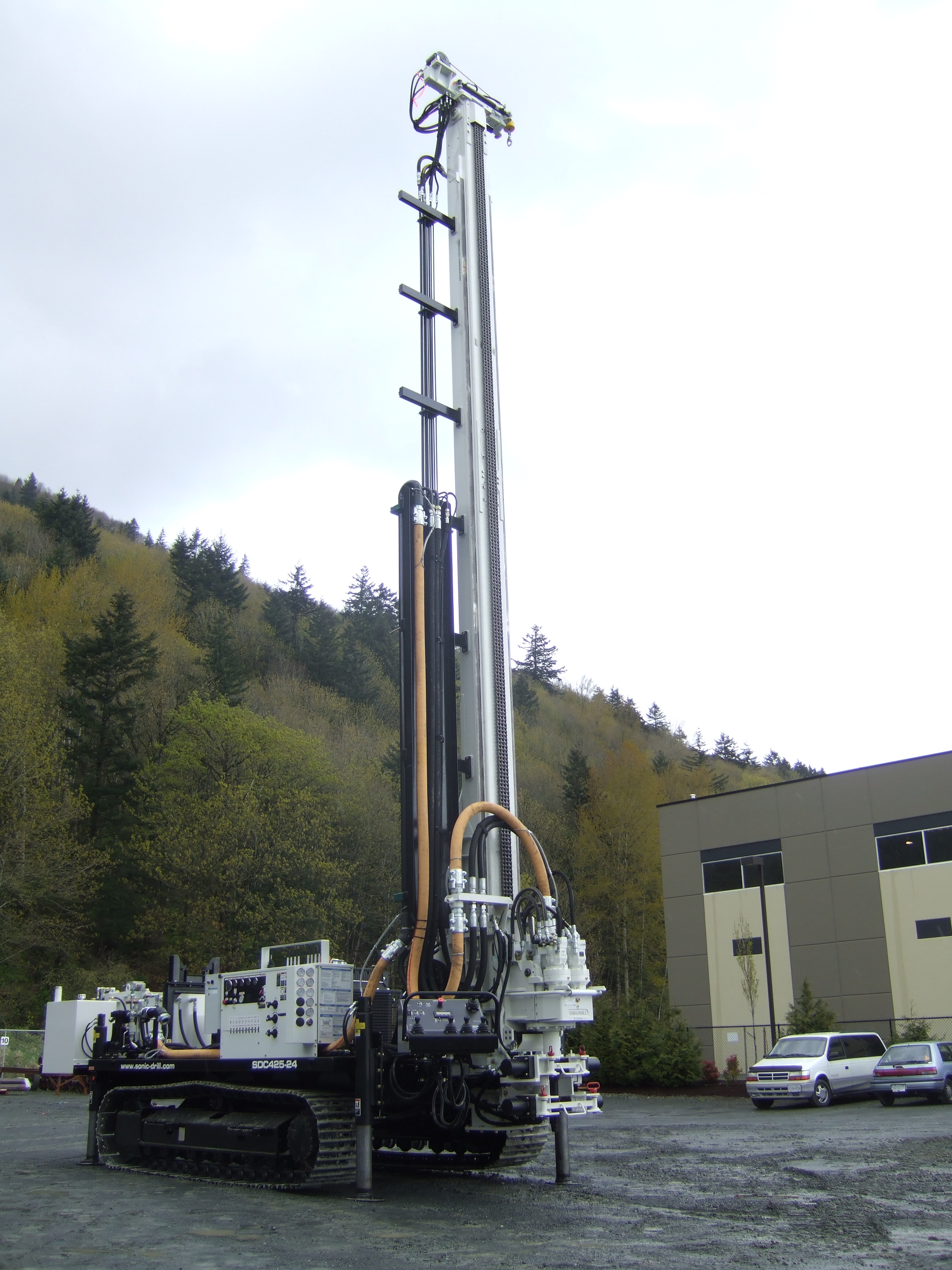

Mast raised


Back to top

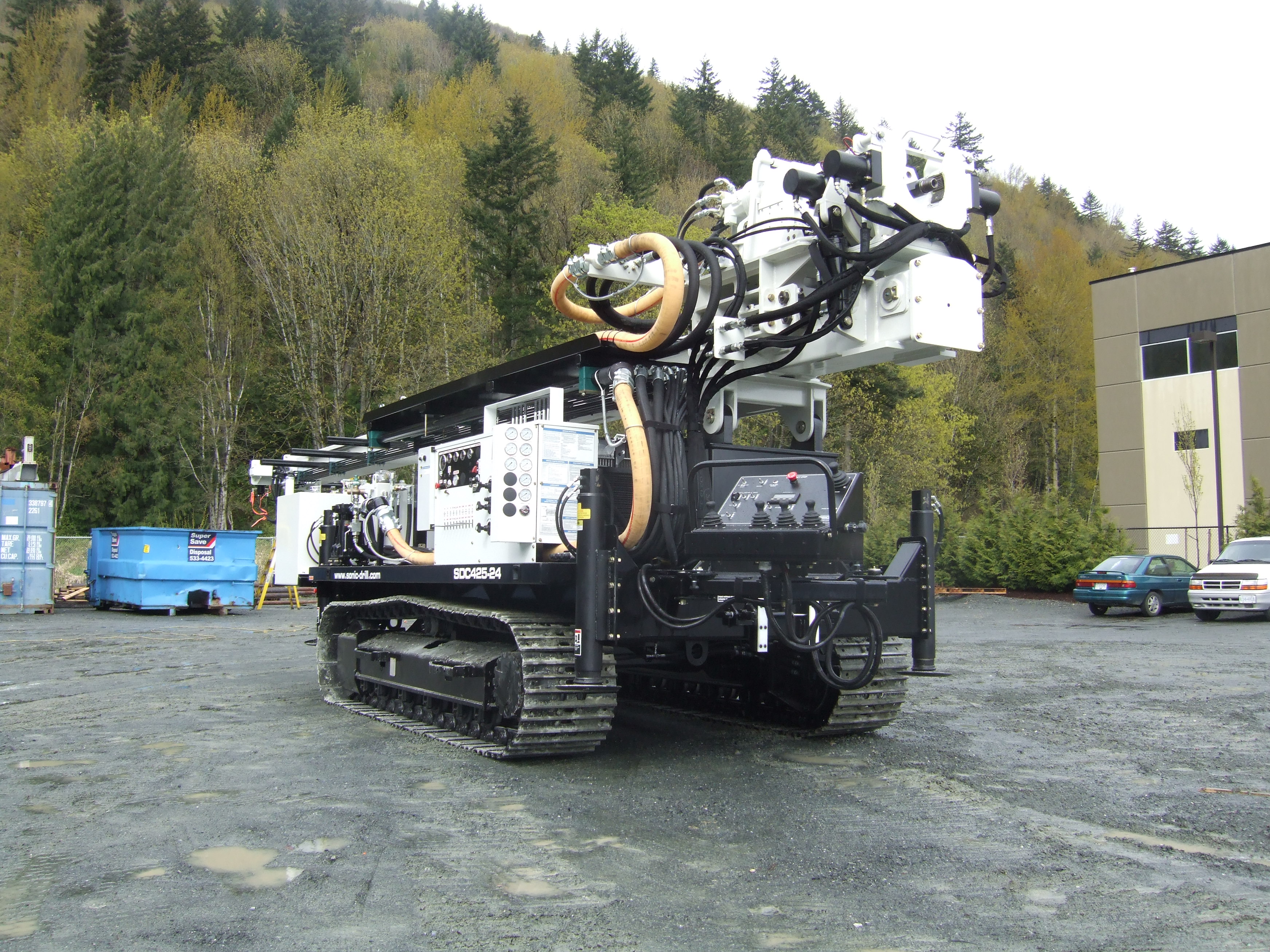

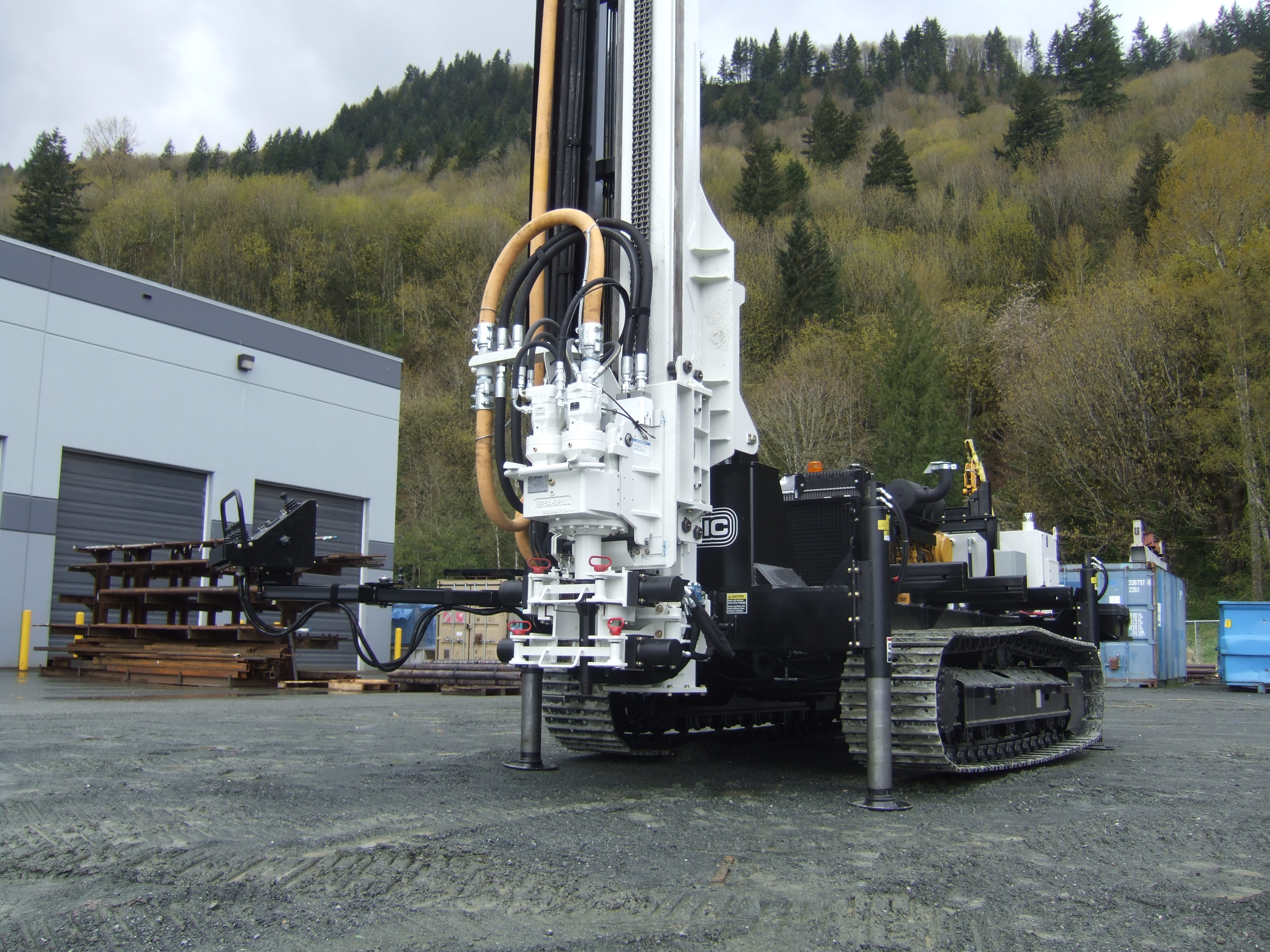

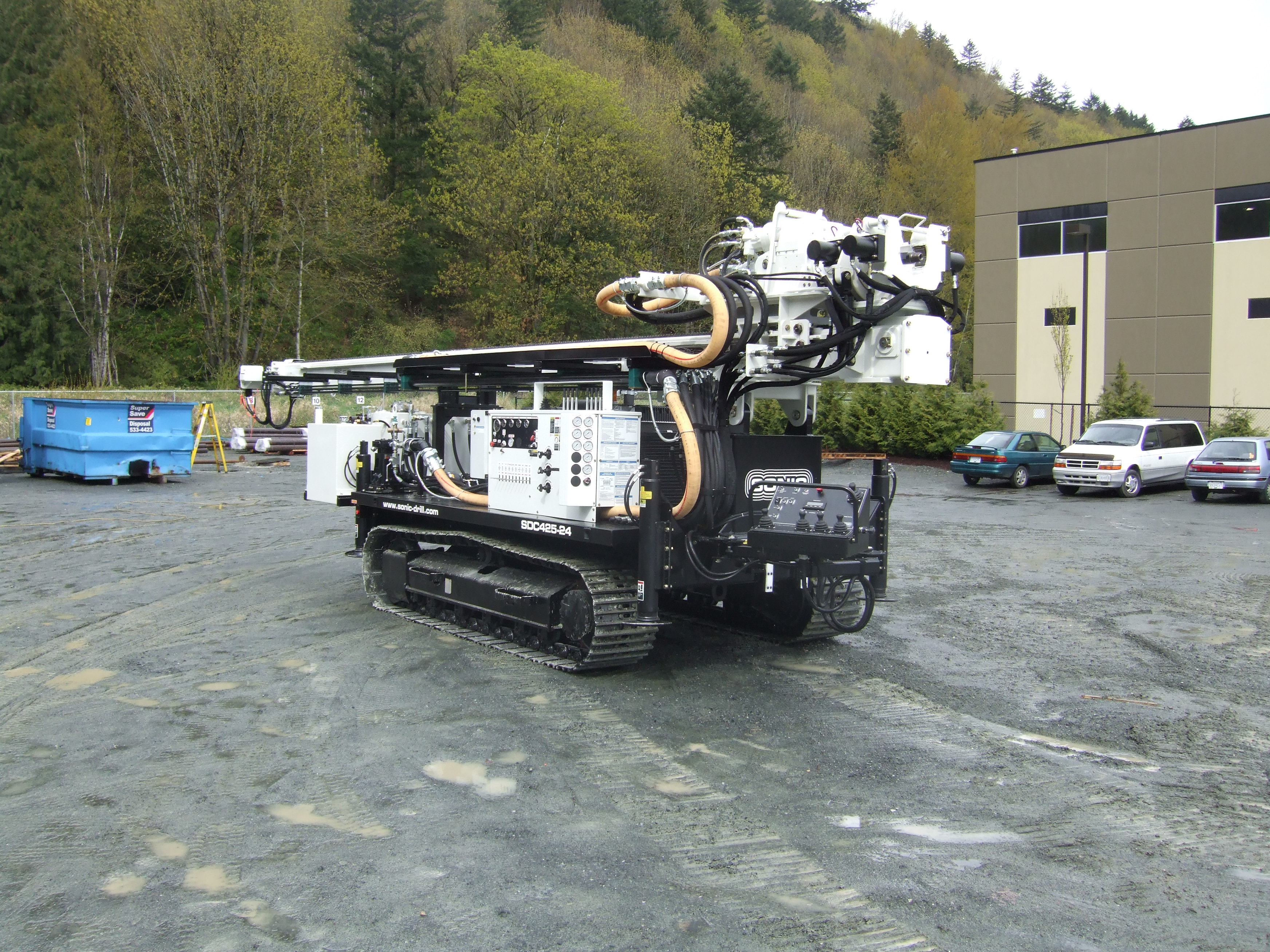

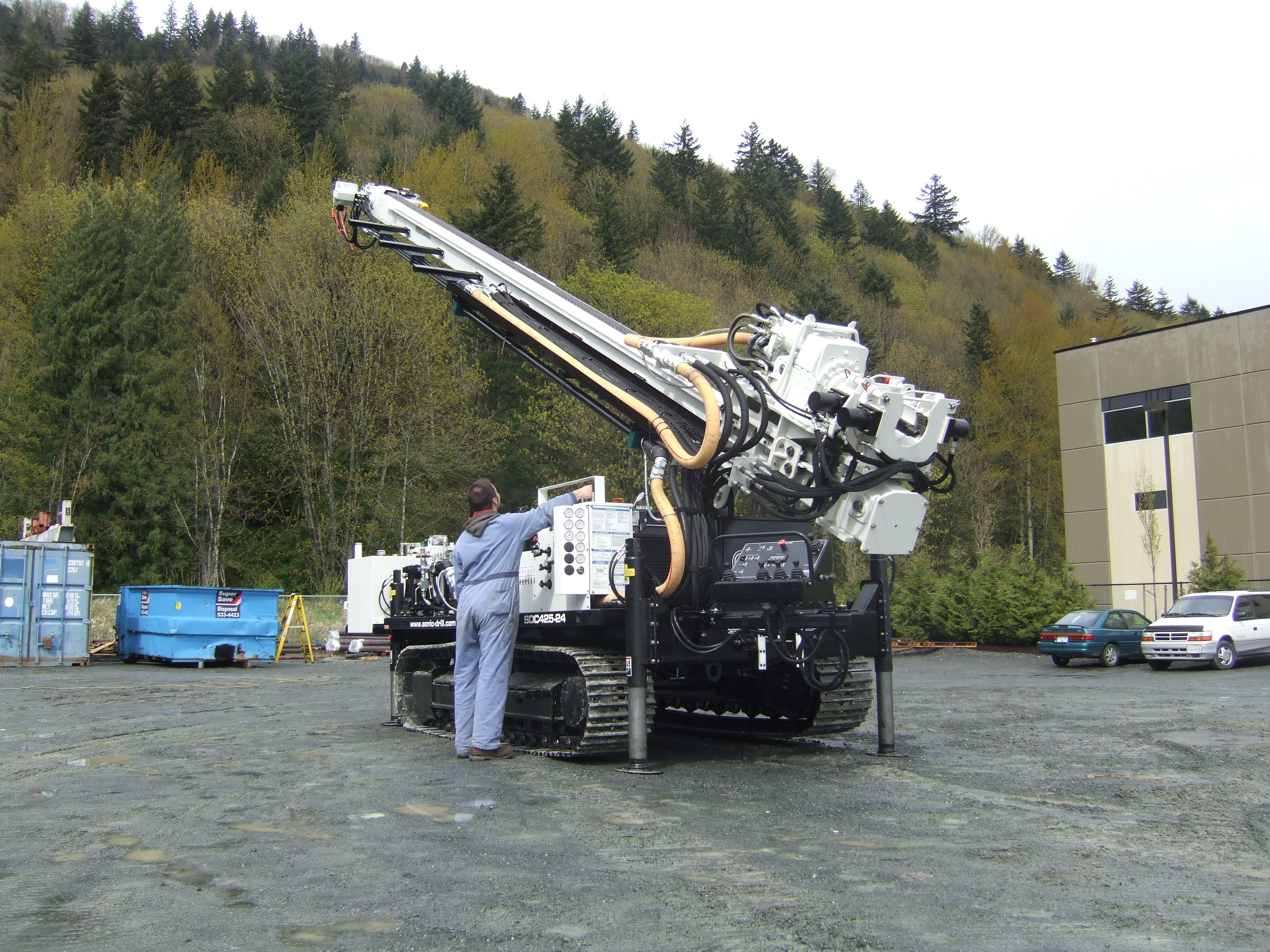

PHOTOS

Back to top

BROCHURES

No brochures currently available.
