WANTED: Used Sonic Drill Rigs



SDC has an extensive international network of qualified buyers constantly seeking to purchase
quality used sonic truck or track rigs (track rigs preferred). Please contact us to see how we can
work together to connect buyers with sellers. We have proven experience successfully re-selling
equipment and re-locating to any international destination.

SDC is a full turn-key door-to-door solutions provider— we can provide world-wide shipping/logistics,
equipment inspection, project coordination, equipment repair/modification, after sale parts, tooling
packages and operator training.

For price or more information, please call or email:
Bill Fitzgerald
Tel: 1-604-588-6081
Email: bill.fitzgerald@sonicdrilling.com

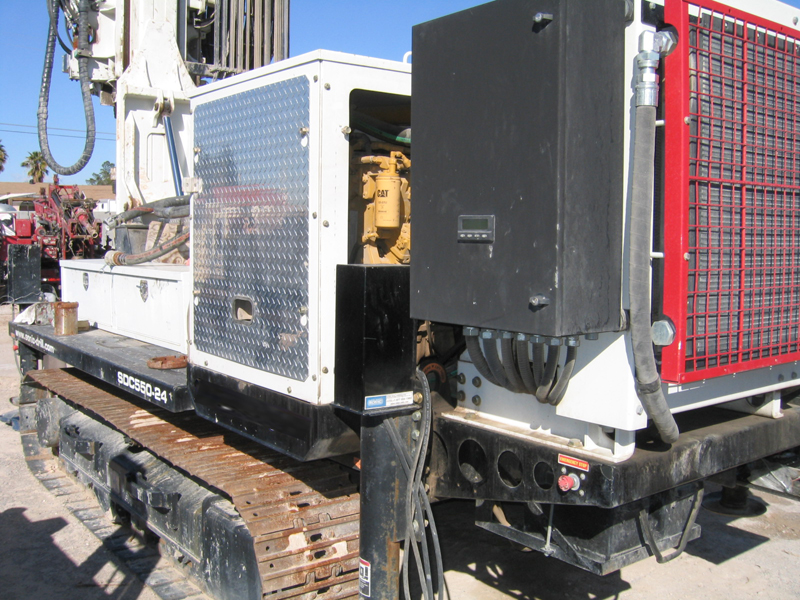

For Sale: Sonic SDC550-24 Drilling Rig w/ Walkways Rod Handler & Pipe Loader

(Includes Transportation Tractor and Trailer)



CLICK TO VIEW VIDEO

• 2007 SDC550-24 Sonic Drill SDC07-022 w/ Walkways, Racks & Pipe Handler, Tool box

• Sonic Head 818 hrs.

• Engine approx. 4500 hrs.

• 2000 Kenworth Tractor T800B T/A 1XKDDU9X6YR960691725,000 km

• 2007 RG50 Witzco 50Ton Lo-boy Trailer w/ Rigging 1W8A11E397S000319

• Hydraulic pipe loader with platform


Sonic Specifications


POWER SOURCE: Skid Mounted, Caterpillar Engine Model C7, 250 HP @ 1850 RPM, EPA/CARB Tier 3, Hydraulic Oil Cooler,

Engine Management System (EMS) Panel, Clutched 3 Pad Pump Drive

RIG DECK: (4) 4” x 30” Jacklegs w/ Counterbalance Valve, (4) Jackleg Covers, Formed & Reinforced Deck Skin, Tubular

& Channel Framework, Anti-Slip Surface

DRILLING MAST: Single Tube Construction, 24FT Head Travel, 36 FT - 2” Overall Length, Hydraulic Cylinder/Chain Driven

System, Trolley, Spring Chain Take-up, Chain Tension Equalizer, Fully Enclosed, Pullback: 24,000 LBS, Pulldown: 16,000 LBS,

Max Casing Length 15 FT

JIB HOIST: Main Hoisting Winch, 4,000 LBS Capacity (Bare Drum), 72 FPM, 3/8” x 157 FT Non-Rotating Cable, Swing Cylinder

WATER PUMP: FMC L1122-D Triplex Piston Pump, 75 GPM, 1000 PSI, Direct Coupled Hydraulic Motor, Coupling Guard, 2”

Camlock w/ Dust Cap, PRV

HYDRAULIC SYSTEM: Hydrostatic Circuit 4500 PSI, Pilot Control, Micro Feed, Float Up/Down, Holdback, High/Low Speed Feed Load Sense, Cold Start, Reservoir Capacity 120 Gal.

SONIC HEAD: Model SONICOR 50K, Hydraulic 90 Degree Tilting Cylinders

818 hrs. - 07/2020

HOSE CARRIER SYSTEM: High Pressure Hydraulic Tubing

CONTROL CONSOLE / SWING ARM: 90˚ Swing, Compact

Lightweight Construction, Ergonomic Configuration, Hinged Gas Dampened Door, Laser-Cut Aluminum Anodized Face Plate, Key Start, Remote Throttle, Digital Tachometer, Pilot Control Valves & Illuminated Console

CRAWLER BASE: CAT Crawler Model 312C (Optional Slew Bearing & Drive Package), Steel Triple Grouser 20” STD Control is Wireless Radio Transmitter

BREAKOUT TABLE: BTC-28 Open C-Clamp Table, Clamping Range: 2 1/2”-8 5/8” Vee-Groove Hardened Inserts

Walkway 24” with access steps on three sides

Toolbox deck mounted with bit storage

Generator Diesel Powertek 6kW 110/ 220 single phase



For price or more information, please call or email:
Bill Fitzgerald
Tel: 1-604-588-6081
Email: bill.fitzgerald@sonicdrilling.com



SOLD: 2005 SDC550 Sonic Track-Mounted Drill Rig



 2005 SDC550 Sonic Track-Mounted Drill Rig
— Non-slew
— Handles 10 ft (3 meter) rods/casings
— Caterpillar 3126B 250 Hp Diesel Engine with 3042 hrs
— Sonicor 50K drill head with 259 hrs
— Double breakout wrench accepts up to 12” casing
— Tower w/ 18 ft. travel and tower slide feature allows for angle drilling up to 45 degrees
— Two auxiliary hydraulic service lines, with electrical, valve and hydraulic quick disconnects
— 4,000 lb winch and side mounted jib
— Caterpillar 312B steel tracks
— L1122 FMC Triplex Piston Pump, 1000 PSI/75 GPM
— Swing out control console
— Deck box
— Four leveling jacks
—Drill tooling included: 4”, 6” & 8” rods/casings/bits
— Safety cage (not included)

Not included (SDC can provide upon request):
— World-wide shipping direct to your door
— Operator on-site training
— Additional features and/or modifications

For price or more information, please call or email:
Bill Fitzgerald
Tel: 1-604-588-6081
Email: bill.fitzgerald@sonicdrilling.com





For Sale: Pipe Handler Attachment

For Sale: Pipe Handler Attachment

Perfect low cost, safe rod handling solution for any Sonic rig.

Condition: New
Weight: 850 KG
Maximum lifting capacity: 250 KG
Pipe length: 5’ FT OR 10’ FT
Clamping range (diameter): 3” [76] – 10-3/4” [273]
Arm lift rotation: 135 degrees clamp
Tilt rotation: 18 degrees

For price or more information, please call or email:
Bill Fitzgerald
Tel: 1-604-588-6081
Email: bill.fitzgerald@sonicdrilling.com





SOLD: 2008 Sonic SDC550 Track-Mounted Drill Rig

SOLD: 2008 Sonic SDC550 track-mounted drill rig with incredibly low hours!!
— Caterpillar C7 250 hp diesel engine. Engine hrs 1407
— Safety cage
— FMC L1122 Bean water pump, 284 lpm, 1000 psi
— Radio remote (tracks only)
— Sonicor 50K drill head with very low hrs! Oscillation hrs 86.6
— Four leveling jacks
— Breakout table (accepts 9" OD casing), currently not mounted to mast
— Crawler frame, rubber bolt-on track pads
— 4000 lbs top mounted winch
— Two auxiliary hydraulic service lines, with electrical, valve & hydraulic quick disconnects
— Tower w/ 18 ft. travel and tower slide feature allows for angle drilling up to 45 degrees
— Price includes lots of tooling and spare parts crates
— Deck box
— Swing out control console

Not included (SDC can provide upon request):
— Freight rates to transport machine direct to your door
— Operator on-site training
— Additional features and/or modifications

For price or more information, please call or email:
Kevin Reimer
Tel: 1-604-754-6448
Email: sales@sonicdrilling.com

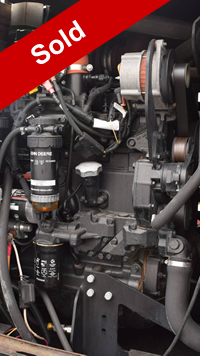

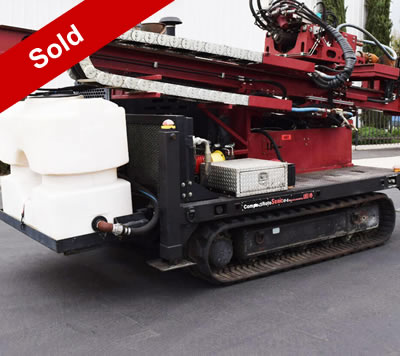

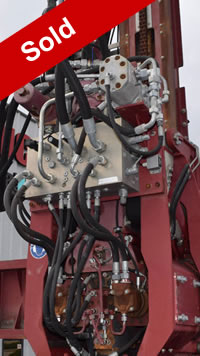

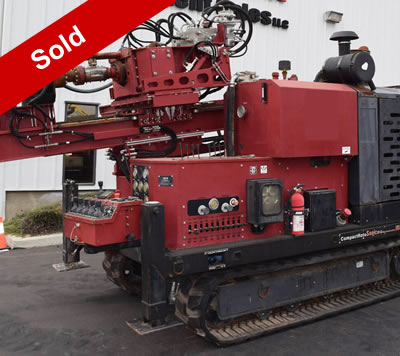

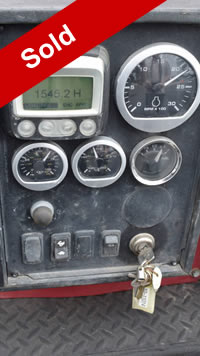

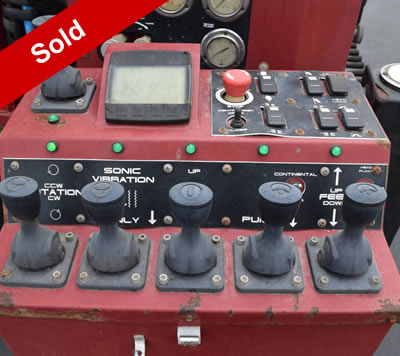

SOLD: 2011 AMS CRS17-C Tracked Sonic Drill Rig

SOLD: 2011 AMS CRS17-C Tracked Sonic Drill Rig
— John Deere 4045 Diesel
— 173 Horsepower
— Hydraulic Hoist
— Rod Clamp
— Wireless Remote
— Four Hydraulic Outriggers
— Water Pump
— Water Tank
— Rubber Tracks
— Vibration: 20,000lbs-28,000lbs
— Feed System: 12' and 8' Stroke
— Pull Back Force: 13,000lbs
— Carrier has 4.6PSI Ground Pressure
— 1,545 Hours

For price or more information, please call or email:
Bill Fitzgerald
Tel: 1-604-588-6081
Email: bill.fitzgerald@sonicdrilling.com

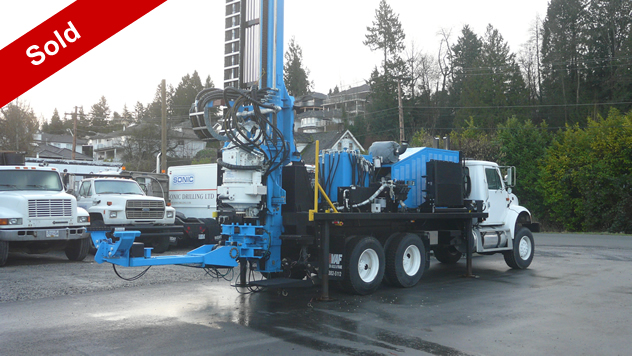

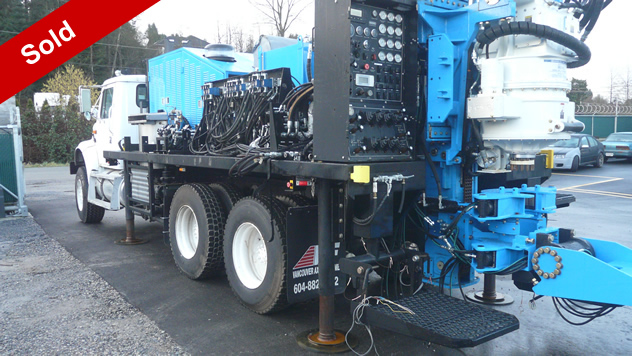

SOLD: Sonic SDC500 Truck Drill Rig —Zero Hours (New)

SOLD: Sonic SDC500 Truck Drill Rig
— Zero (0) hrs – brand new!
— Deck Mounted Power Unit C7 250 Hp Tier 3 Interm Engine 24V
— 28 feet of drill head travel (approximate)
— Breakout table, tower mounted (2-1/2 to 8" Nominal, 2 level)
— Compact Operators Console
— Fully Painted
— Hose track assembly for tower hosing
— Hydraulic Stabilizer Legs (4)
— Rexroth Valves, pumps and controls (where possible)
— Safety Operations Manual (Two Copies, English)
— Safety Decals, English
— Side Shift, (head only, to the right when facing drill head)
— Sonicor 50K Drill Head
— Standard Hydraulic Oil (Petro Canada Hydrex XV)
— Steel Deck complete with non skid walking surfaces
— 3 Hole Pump Drive Box
— Water pump, Bean model W1122 BCD (75 GPM / 1000 PSI)
— Arctic Fox cold weather hydraulic oil heater
— Single Rod Loader (SRL) with Grapple, Wrist L30-15 & L20-15 Rotary Accuators
— Gravity feed hydraulic circuit
— Jib Hoist 2000 Lbs winch(top mount)
— Lighting Package (Tower)
— 3000 PSI Pressure Washer c/w High Pressure Hose & Wand
— Two Generation 2 Engine Oil Filtration System
— Geo-Loop 50 Gallon Single Stainless Steel Tub Grout Plant complete with slide out Hydraulic Controls, Dual Piston
— Secondary oil cooler package
— Two Auxillary hydraulic service lines with electrical, valve and hydraulic quick disconnects
— Angle Drilling Package

Note: 1997 International 6 x 6 4900 Series truck can be removed and replaced with a new truck.

For price or more information, please call or email:
Bill Fitzgerald
Tel: 1-604-588-6081
Email: bill.fitzgerald@sonicdrilling.com





SOLD: 2014 Sonic SDC375 Track Drill Rig

— SOLD: 2014 Sonic SDC375 Track Drill Rig
— Model: SDC375
— Engine: Cat 250 hp
— Drill Rig Hours: 512
— Oscillation Hours: 160
— Drill rig fits into a 40’ container for shipping.
— Equipped with a wire line system which allows 240 feet of drilling.
— Also equipped with a 2000 lb. winch which can be operated separate from the wire line winch.
— Equipped with a (SRL) Single Rod Loader
— Equipped with a Bean water pump
— Deck boxes included

For price or more information, please call or email:
Bill Fitzgerald
Tel: 1-604-588-6081
Email: bill.fitzgerald@sonicdrilling.com

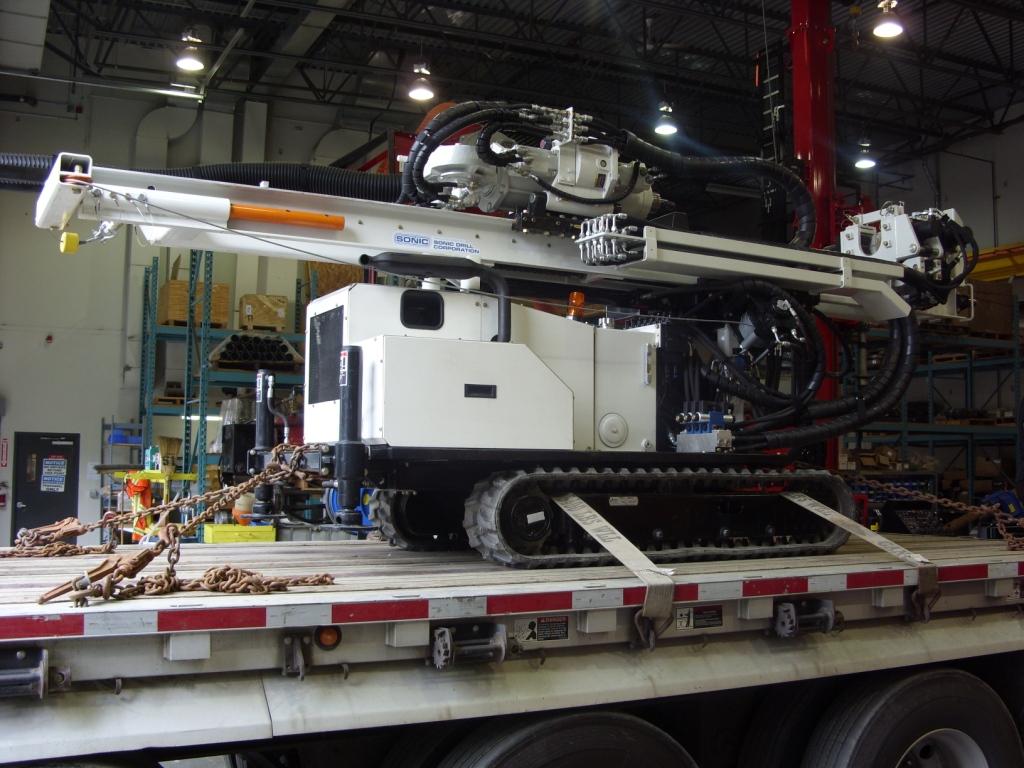

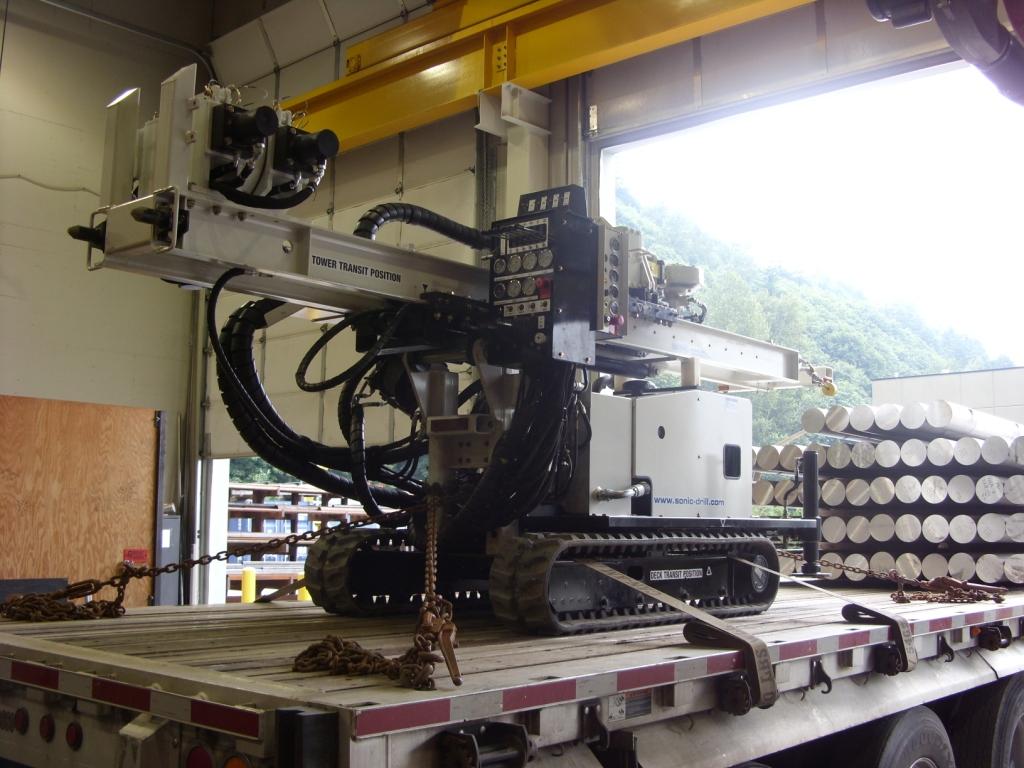

SONIC PROBE 150

SPECIFICATIONS:

  • MODEL NO: SDC 150
  • HYDRAULIC RESERVOIR TANK
  • KUBOTA DIESEL ENGINE (35 HP)
  • 2 JACK LEG STABILIZERS
  • MAST SLIDE (DUMP) 2 FT
  • DIESEL FUEL TANK
  • TOWER FOOT TRAVEL (FORWARDS AND BACKWARDS) 12 IN
  • TOWER LATERAL TRAVEL (SIDE TO SIDE) 17 IN
  • TRACK ASSEMBLY, COMPLETE WITH RUBBER TRACKS
  • SWING MOUNTED CONTROL CONSOLE
  • EP-26 DRILL HEAD
  • 100" STROKE MAST
  • BREAKOUT TABLE (1 ½" TO 6 ½" CLAMPING RANGE)
  • JIB HOIST WITH HYDRAULIC WINCH
  • RADIO TRANMITTER CONTROL
  • BOSCH HYDRAULICS

PRICE: $$$$$$$$ (As-is where-is, ex-works owners location)

Bill Fitzgerald

TEL: 604-588-6081

EMAIL: bill.fitzgerald@sonicdrilling.com


PHOTOS

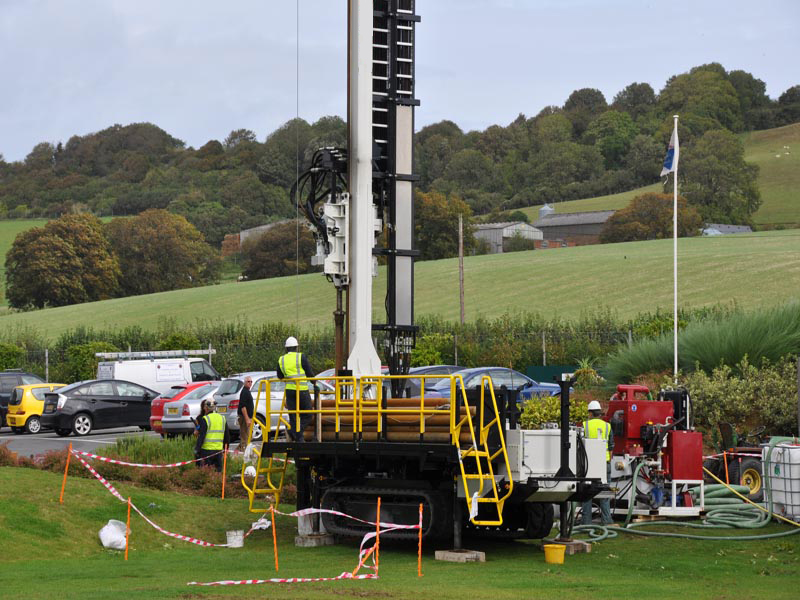

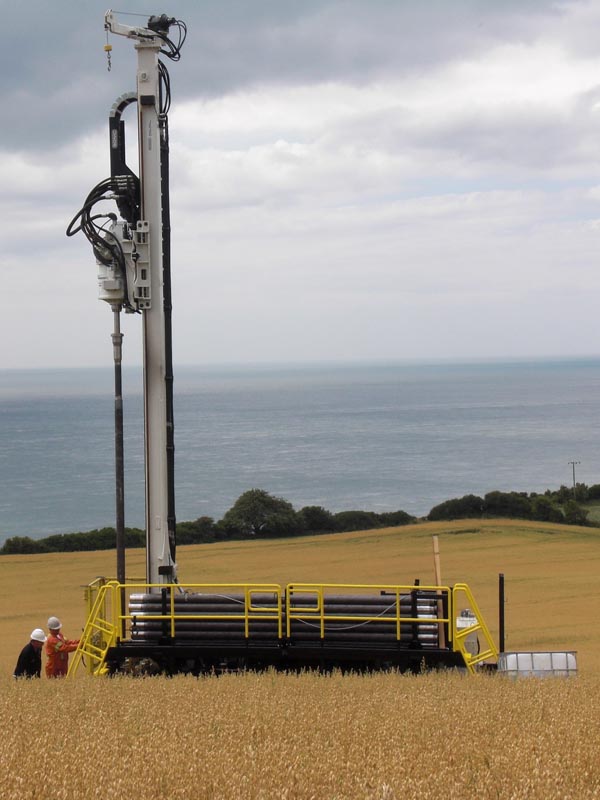

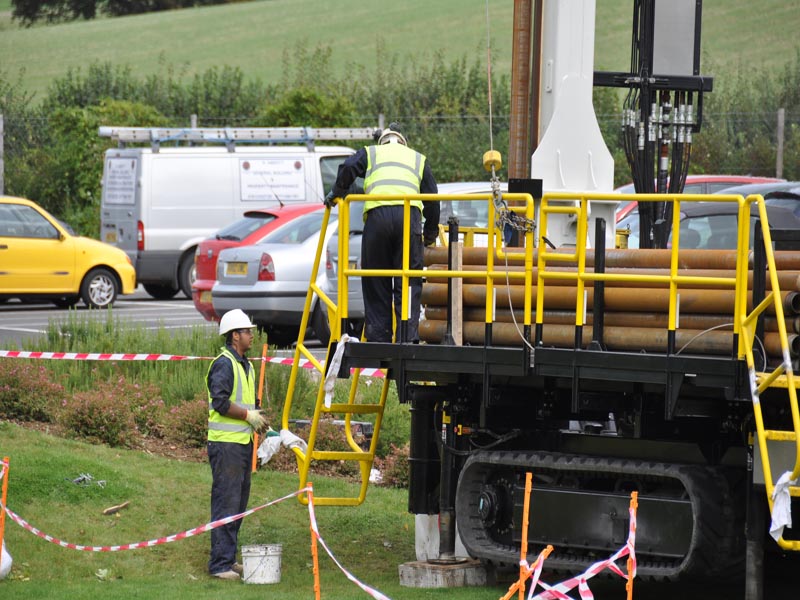

2011 SDC450-24 & TOOLING PACKAGE

NEAR NEW, AVAILABLE & WORK READY - WON'T LAST LONG!

SPECIFICATIONS:

  • MODEL NO: SDC450-24
  • MODEL YEAR: 2011
  • ENGINE HOURS: 428 (as of August 27/12)
  • OSCILLATION HOUR METER: 76.8 (as of August 27/12)
  • COLOR: WHITE & BLACK

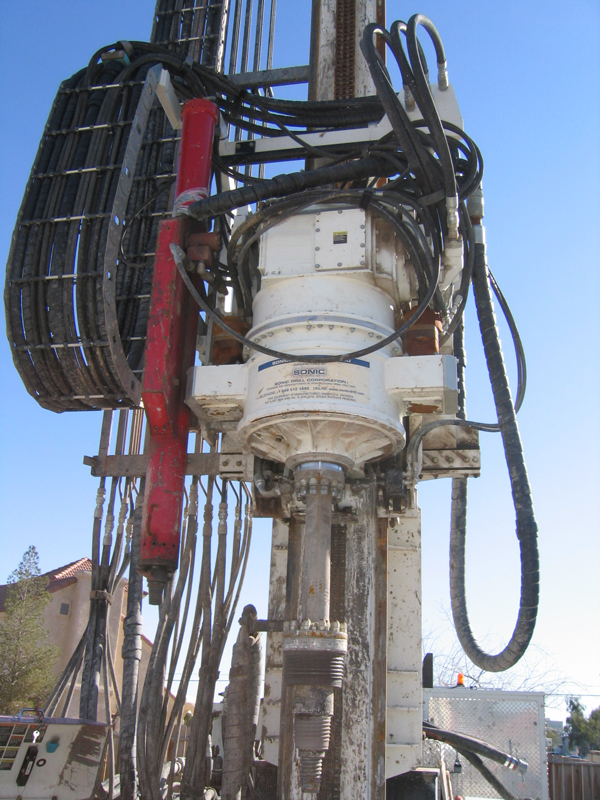

  • SONICOR 50K DRILL HEAD W/ SIDE SHIFT
  • 90 DEGREE HEAD TILT
  • 24 FT STROKE MAST FOR 20 FT (6 METER) RODS
  • 8-3/4" HEAVY DUTY BREAKOUT TABLE
  • CATERPILLAR C7 250HP DIESEL ENGINE
  • FMC L1122 WATER PUMP W/ ABRASION RESISTANT VALVES, 75 GPM 1500 PSI
  • AUXILLARY HYDRAULIC QUICK DISCONNECTS
  • RUBBER TRACK ASSEMBLY
  • BOSCH REXROTH VARIABLE DISPLACEMENT PUMPS, LOAD SENSE SYSTEM
  • HYDRAULIC RESERVIOR TANK
  • DIESEL FUEL TANK
  • DRILLER CONSOLE W/ LOCKABLE COVER AND SWING ARM
  • HYDRAULIC TOWER LOCKS
  • 4 JACKLEG STABILIZERS
  • JIB HOIST W/ PL5 (4500 LB) PULLMASTER WINCH
  • HOSE CARRIER SYSTEM
  • RADIO TRANSITTER CONTROL (TRAMMING)
  • LIGHTING PACKAGE
  • SAFETY CAGLE WITH INTERLOCKS
  • CUSTOM ROD STORAGE RACK

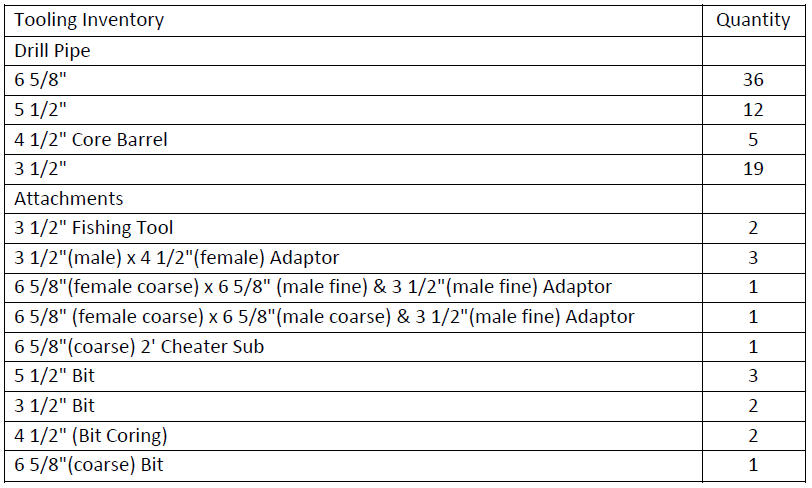

  • TOOLING PACKAGE (EXTENSIVE LIST)

PRICE: $$$$$$$$ (As-is where-is, ex-works owners location - EUROPE)

Bill Fitzgerald

TEL: 604-588-6081

EMAIL: bill.fitzgerald@sonicdrilling.com


PHOTOS

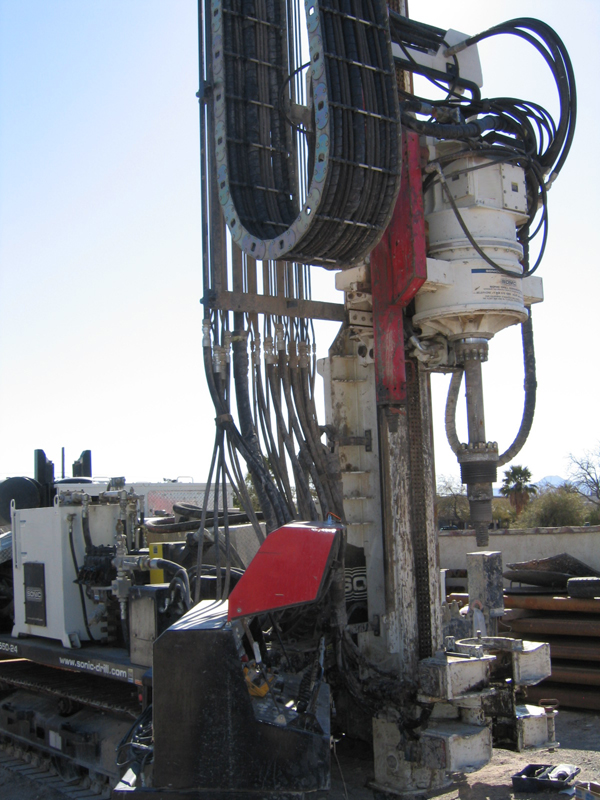

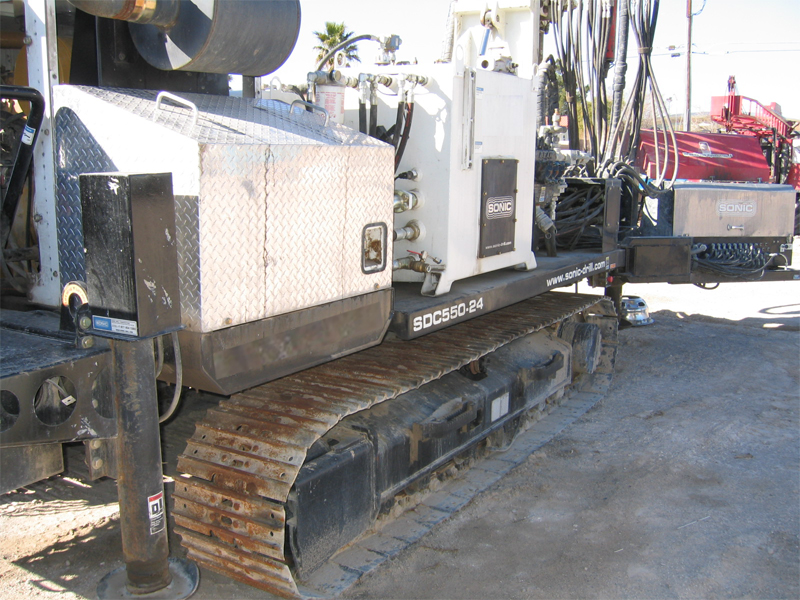

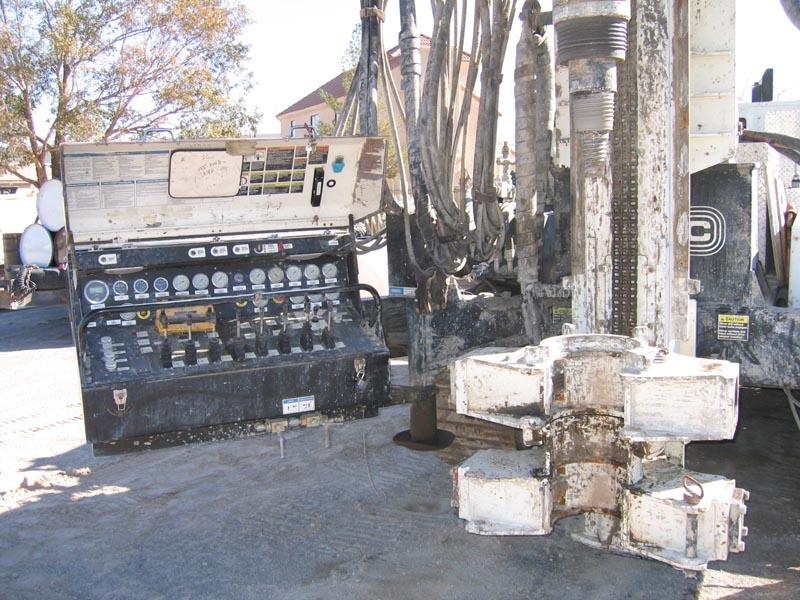

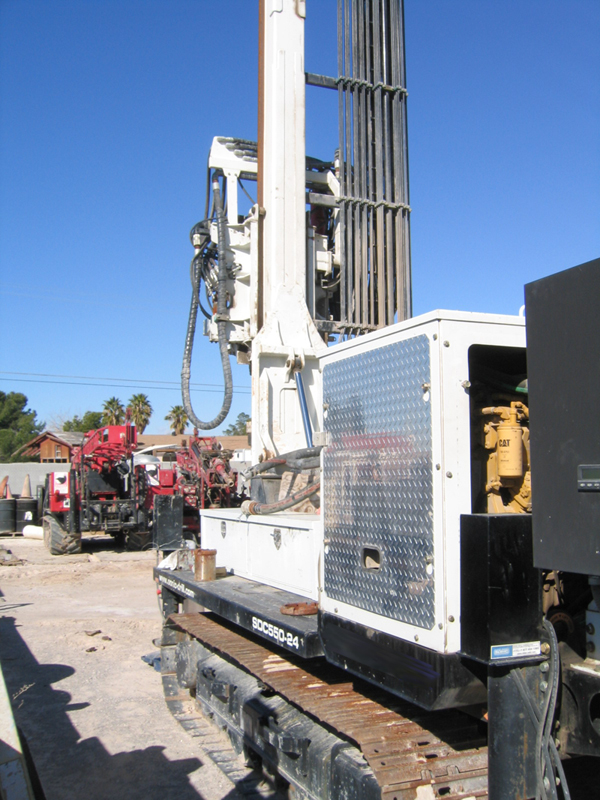

2008 SDC550-24

SPECIFICATIONS:

  • MODEL NO: SDC550-24
  • MODEL YEAR: 2008
  • ENGINE HOURS: 2332 (as of March 13/12)
  • OSCILLATION HOUR METER: 244 (as of March 13/12)
  • COLOR: WHITE & BLACK
  • SONICOR 50K DRILL HEAD W/ SIDE SHIFT
  • 90 DEGREE HEAD TILT
  • 24 FT STROKE MAST FOR 20 FT (6 METER) RODS
  • 8-3/4” HEAVY DUTY BREAKOUT TABLE
  • CATERPILLAR C7 250HP DIESEL ENGINE
  • FMC L1122 WATER PUMP W/ ABRASION RESISTANT VALVES, 75 GPM 1500 PSI
  • AUXILLARY HYDRAULIC QUICK DISCONNECTS
  • CATERPILLAR 312 UNDERCARRIAGE STEEL TRACKS
  • BOSCH REXROTH VARIABLE DISPLACEMENT PUMPS, LOAD SENSE SYSTEM
  • HYDRAULIC RESERVIOR TANK
  • DIESEL FUEL TANK
  • DRILLER CONSOLE W/ LOCKABLE COVER AND SWING ARM
  • HYDRAULIC TOWER LOCKS
  • 4 JACKLEG STABILIZERS
  • JIB HOIST W/ PL5 (4500 LB) PULLMASTER WINCH
  • HOSE CARRIER SYSTEM
  • RADIO TRANSITTER CONTROL (TRAMMING)
  • SPT HAMMER

PRICE: $$$$$$$$ (As-is where-is, ex-works owners location)

Bill Fitzgerald

TEL: 604-588-6081

EMAIL: bill.fitzgerald@sonicdrilling.com


PHOTOS

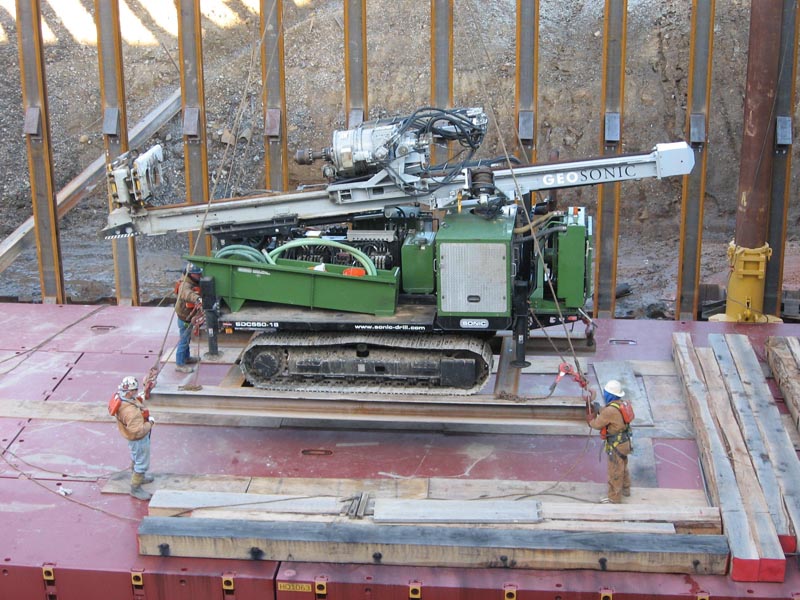

2007 SDC550-18

SPECIFICATIONS:

  • MODEL NO: SDC550-18
  • SERIAL NO: SDC07-020
  • MODEL YEAR: 2007
  • ENGINE SERIAL NO: JTF01088
  • ENGINE HOURS: 2208
  • OSCILLATION HOUR METER: 301.1
  • COLOR: GREEN & GRAY
  • SONICOR 50K DRILL HEAD
  • 90 DEGREE HEAD TILT
  • 18 FT STROKE MAST FOR 10 FT (3 METER) RODS
  • 12-3/4" HEAVY DUTY BREAKOUT TABLE
  • CATERPILLAR C7 250HP DIESEL ENGINE
  • FMC L1122 WATER PUMP W/ ABRASION RESISTANT VALVES, 75 GPM 1500 PSI
  • AUXILLARY HYDRAULIC QUICK DISCONNECTS
  • CATERPILLAR 312 UNDERCARRIAGE STEEL TRACKS C/W 360 SLEW BEARING FEATURE
  • BOSCH REXROTH VARIABLE DISPLACEMENT PUMPS, LOAD SENSE SYSTEM
  • HYDRAULIC RESERVIOR TANK
  • DEISEL FUEL TANK
  • 10 FT ROD STORAGE BOX
  • MAST SLIDE (DUMP) 2' + 2' SYSTEM = 4' TOTAL
  • DRILLER CONSOLE W/ LOCKABLE COVER AND SWING ARM
  • HYDRAULIC TOWER LOCKS
  • 4 JACKLEG STABILIZERS
  • JIB HOIST W/ PL5 (4500 LB) PULLMASTER WINCH
  • HOSE CARRIER SYSTEM
  • RADIO TRANSITTER CONTROL (TRAMMING/SLEW)

PRICE: $$$$$$$$ (As-is where-is, ex-works owners location, central USA)

Bill Fitzgerald

TEL: 604-588-6081

EMAIL: bill.fitzgerald@sonicdrilling.com

PHOTOS





Copyright © 2002-2011 Sonic Drill Corporation. All rights reserved.
