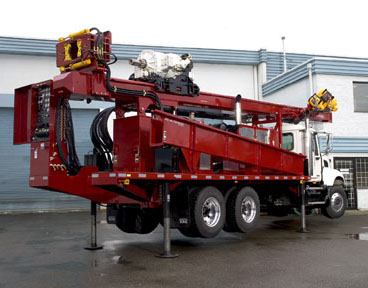

SDC500-28E   STANDARD FEATURES
Breakout table, tower mounted (2-1/2 in (64 mm) to 8 in (203 mm) nominal, 2 level)
24 ft (? m) drill head travel complete with 90 degree tilt
Steel deck complete with nonskid walking surfaces
Hydraulic stabilizer legs (four)
Safety decals (English)
Fully painted, black and white
Rexroth valves, pumps and controls (where possible)
Illuminated control console with hinged security cover (vertical)
Safety and operation manual (two copies, English)
Three hole pump drive box, complete with clutch
180 gal (US) (? L) hydraulic oil (approximately, standard grade)
Deck mounted power unit (250 HP Cat, 24V) complete with enclosure
Hose track assembly for tower hosing
Tower slide, bumper and controls (48 inch travel)
Sonicor 50K drill head

Back to top

OPTIONAL FEATURES
Air tank complete with quick disconnect (for blow down)
Automated Rod Handler with storage (requires rough-in package)
Auxilliary hydraulic service lines with electrical, valve and hydraulic quick disconnects (2 only)
Bolting pads (rear side of A-frame)
Custom colour (non-metallic)
Deck boxes with locks (1 only)
Grout plant (double drum) complete with valving and controls)
Heavy duty breakout table (4 to 12 inch nominal)
Hydraulic oil type (non-standard)
Jib hoist complete with 4000 pound winch (top mount, 72 FPM max)
Lighting package (tower)
Operator training and on site assistance
Pull back control console complete with valving and controls
Rod spinner complete with mounting arms
Rough-in package for Automated Rod Handler
Rubber Tracks
Secondary oil cooler package
Side shift (head)
Pipe guide set (includes 3 standard size inserts)
Stationary rod rack (for 20 foot rods)
Water pump, Bean Model W1122 BCD (37 GPM/1000 PSI)
Water pump, Bean Model L1122D HSNAR (75 GPM/1000 PSI, abrasion resistant)
Wiggle tail
Working platform bridge

Back to top


DIMENSIONS

WEIGHT (APPROXIMATE)
Width

Length
Mast folded

Height
Mast folded

Mast raised


Back to top
